Reversing in Ghidra SRE

Ghidra SRE is used as the primary reverse engineering platform. All instructions and tools presented on the site are designed to work with Ghidra.

This guide will help you dive into the world of reverse engineering in just a few steps.

warning

The official version of Ghidra cannot handle far-pointers correctly. You must use the patched version of Ghidra when working with E-GOLD firmware.

What to do before you start​

  1. Install the patched version of Ghidra.

  2. Install C166 support for Ghidra. You can do this in File -> Install Extensions

  3. Obtain a fullflash from the phone.

  4. Dump RAM and SRAM from your phone.

Step 1: Find out the load base of your fullfhash​

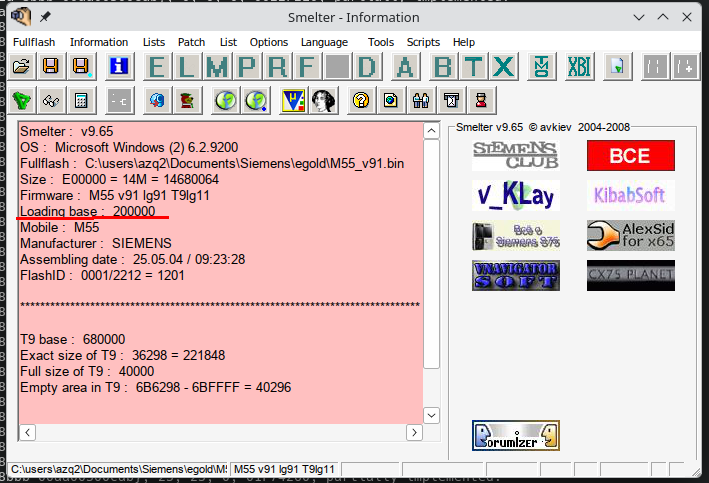

You can do this using Smelter.

Details

Step 2: Install our plugins for Ghidra​

Details
  1. Download: ghidra_scripts.zip or clone the repository

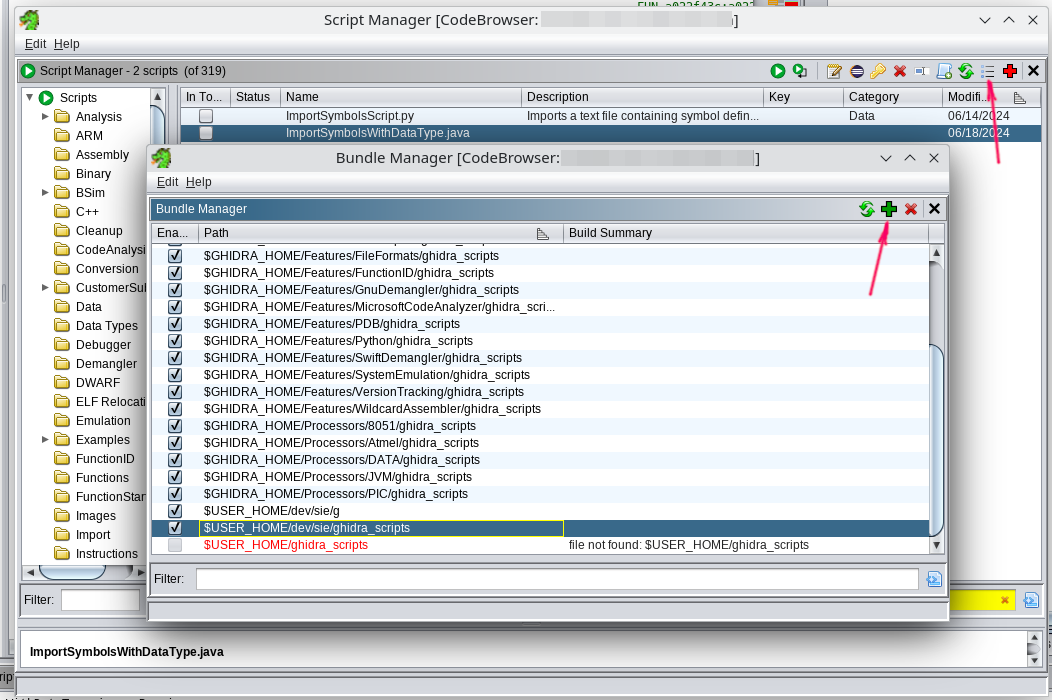

  2. Open Window -> Script Manager
  3. Click "Manage Script Directories"
  4. Add the path to the extracted ghidra_scripts folder.

Step 3: Load your fullflash.bin into Ghidra​

Details

  1. Launch the disassembler and select File -> Import File

  2. Select the fullflash.bin file

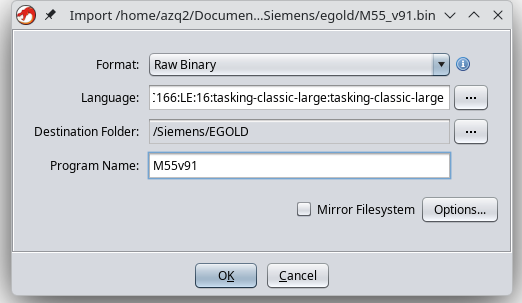

  3. Configure the import parameters:

    • Format: Raw Binary
    • Language: Infineon C167CR TASKING Classic large

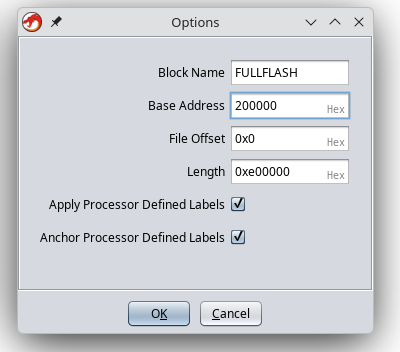

    • Options → Block Name: FULLFLASH
    • Options → Base Address: 200000 (enter the address shown in Smelter here)

  4. Click fullflash.bin in the project list.

  5. Ghidra will offer automatic analysis; you need to decline (click No).

Step 4: Edit the FULLFLASH region attributes​

Go to Window -> Memory Map and set the attributes for the "FULLFLASH" block:

 R   W   X    Volatile
[x] [ ] [x]     [ ]

It is very important to clear the W checkbox, as this directly affects decompilation.

Step 5: Remove unnecessary memory regions​

  1. Go to Window -> Memory Map
  2. Remove XRAM, CAN, IRAM

Do not touch the others.

Step 6: Configure auto-analysis parameters​

  1. Select Analysis -> Auto Analyse

  2. Change the analysis parameters:

    Disable:

    • Embedded media
    • Non-returning functions - discovered (otherwise the disassembler may stop prematurely inside a function)
    • Demangler GNU

    Enable:

    • Scalar operand references
    • Shared return calls with the [x] Allow conditional jumps option

  3. Click "APPLY", but DO NOT CLICK "ANALYZE"!!!

  4. Close the analysis window.

Step 7: Import the previously saved RAM​

Example for M55:

  1. File -> Add to Program

  2. Select the file, for example: M55v91_RAM.bin

  3. Specify the parameters:

    • Block Name: RAM
    • Base Addr: 0x000000
    • [x] Overlay

    Click "OK".

  4. Go to Window -> Memory Map and set the attributes for the "RAM" block:

     R   W   X    Volatile
    [x] [x] [x]     [ ]

Step 8: Find any code​

Usually it is enough to go to 0x0 or 0x800000 (depending on the firmware), then press D (decompilation).

Step 9: Auto-analyze the firmware​

Full analysis

  1. Open Analysis -> Auto Analyse 'fullflash.bin'
  2. Make sure the parameters match those specified in Step 3
  3. Click ANALYSE

This will take 10-30 minutes. The process is long, so be patient.

Congratulations, you did it! ✨​

We are waiting for your patches in the patch database patches.kibab.com :)
