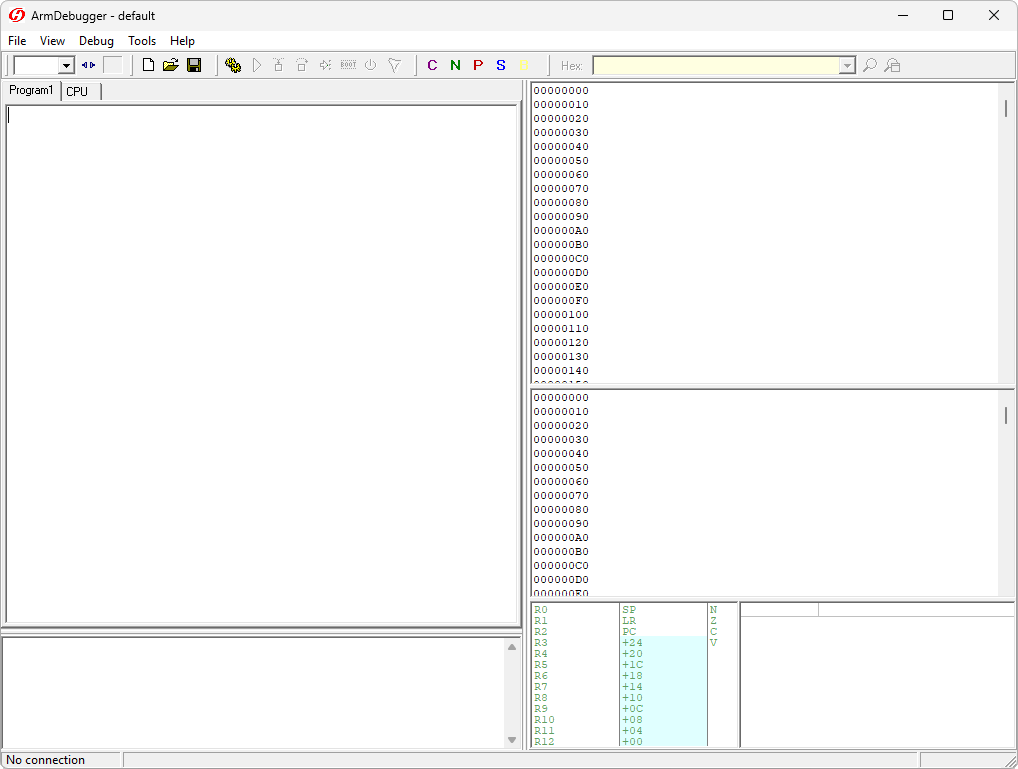

ArmDebugger

Homepage: http://chaos.allsiemens.com/software.html (web archive)
Forum thread: http://forum.allsiemens.com/viewtopic.php?t=20735 (web archive)
Author: Chaos

Debugger for Siemens 65/70/75 series phones.

• Automatic generation of a CGSN patch from a dumped full flash
• Viewing phone memory contents in a HEX dump
• ARM/Thumb disassembler with inline assembler
• Step-by-step tracing of a program or process
• Setting watchpoints on any flash memory address and on writes to a RAM range
• Ability to edit memory, including the flash area (flash page substitution is used)
• Search for bytes/strings in memory, references
• Integration with Keil ARM tools
• Additional features: dump memory to a file, call flash functions with parameters, hex/bin/dec calculator

Instructions for using ArmDebugger.

Versions

• 0.7.9m2 — ArmDebugger-079m2.zip (2012-04-07)
  Dimadze modification for BenQ-Siemens: support for MallocAddress, monitoring of external and virtual RAM, additional Nucleus patterns, and pointer highlighting.
  Windows 32-bit · 527 KiB

Archived versions (3)

• 0.7.9 — ArmDebugger-079.zip (2006-12-28)
  Includes a quick guide and examples for Keil ARM Tools
  Windows 32-bit · 525 KiB
• 0.4.1 — ArmDebugger-041.zip (2005-07-21)
  Windows 32-bit · 475 KiB
• 0.2.1 — ArmDebugger-021.zip (2005-05-19)
  Released under the name Arm65Debugger
  Windows 32-bit · 451 KiB
